A Complete Guide on How to Choose a Vacuum Packing Machine and Maintenance Tips

Dry fruit that softens, sweets that go stale and machined parts that spot with rust usually share one cause: air left in the pack. A vacuum packing machine removes it and seals the pouch in the same cycle. Choosing one is mostly about the product and the pouch, not the machine. This guide explains the types, the numbers that matter and how to keep a vacuum packer working well.

What Is a Vacuum Packing Machine?

The filled pouch is laid across a sealing bar inside a chamber, the lid closes, a pump draws the air out of the chamber and the pouch, and the bar seals the mouth. Opening the lid lets air back into the chamber, pressing the film tight around the product. The vacuum packing machines page lists the six PackForge models with their rates.

Two pouches can be sealed in each cycle on the VP single range, because the chamber holds two sealing bars side by side.

Why Use a Vacuum Packing Machine?

• Moisture kept out of dry fruit and spices.
• Slower staling of sweets and snacks.
• Dry storage for machined parts.
• Smaller packs that take less carton space.
• A firm, neat pack – and a hard brick for powders on the SV650.

What Are the Major Types of Vacuum Packing Machines?

Table Top

• VP260 / 300: 260 mm bar or two 280 mm bars, from ₹30,643 + ₹5,516 GST
• VP250 for tea, 120 W, ₹56,448 + ₹10,161 GST

Single and Double Chamber

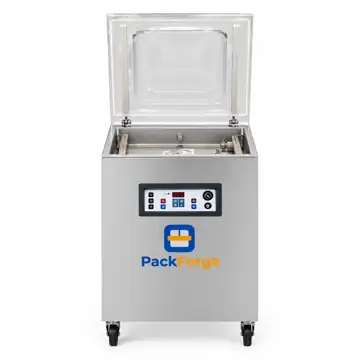

• VP single: 400, 500 or 600 mm, two pouches a cycle, from ₹55,552 + ₹9,999 GST

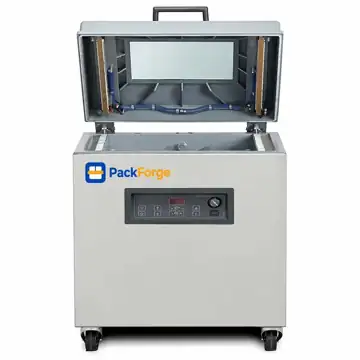

• VP2SB: two chambers in turn, from ₹1,43,360 + ₹25,805 GST

Brick and Vertical

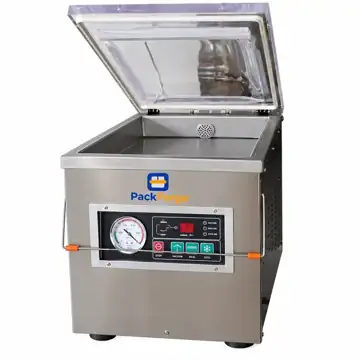

• SV650 brick packs for powders, from ₹1,20,064 + ₹21,612 GST

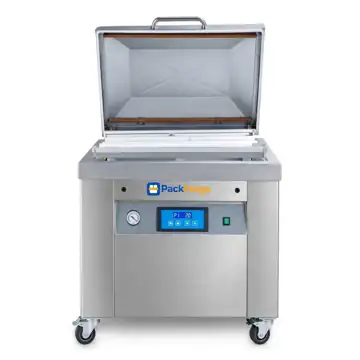

• VP600V upright pouches for wet food, from ₹5,03,552 + ₹90,639 GST

Understanding Bar Length, Chamber Size and Pump

Bar length must be longer than the widest pouch laid flat: 260 or 280 mm on the table top pair, 400 to 600 mm on the floor machines, up to 1000 mm on the VP600V. Chamber depth limits pack thickness – only 65 mm on the table top pair. Pump rate, in cubic metres an hour, sets how quickly the chamber empties: 8 on the table top pair, 20 on the VP600V, 40 on the SV650. Seal width is 10 mm on the floor machines. Power ranges from a 120 W counter unit to 380 V three phase on the SV650 and VP600V.

Put the numbers together before choosing: a pouch that fits the bar but not the chamber depth, or a machine that needs three phase power you do not have, rules a model out however good its price. Measure the widest and the thickest pack you will ever run, not the average one, and check the supply at the exact spot where the machine will stand.

Vacuum Packer Features to Look For

Two sealing positions to seal two pouches a cycle.

Gas flushing as an option where a product needs gas instead of plain vacuum.

A stainless steel chamber for food, as on the SV650.

A double chamber when packers wait at the lid.

Upright sealing for liquids.

Normal-socket running for counters and labs.

How to Choose the Right Vacuum Packing Machine?

1. Describe the product: dry, powdery, sharp or wet.
2. Measure the widest pouch and the thickest pack.
3. Count packs per day and time a load against a cycle.
4. Check power: single phase only, or three phase as well.

For example, a cheese counter would use a VP260; a dry fruit trader packing daily batches a VP single; a paneer unit racing a dispatch deadline the VP2SB; a coffee roaster selling bricks the SV650; a pickle maker the VP600V.

Common Vacuum Packing Problems

Powder or dust in the seal: fill lower and wipe the mouth; tea dust rides up with the escaping air.

Liquid reaching the seal: the product needs the upright VP600V.

Pierced pouches: sharp parts need a protector or a heavier pouch.

Crooked seals: the pouch is too close to the bar length; choose a longer bar.

Slow output: if the vacuum cycle holds people up, the double chamber VP2SB lets loading and the cycle overlap.

Vacuum Packer Buying Checklist

• The product: dry, powdery, sharp, moist or runny, and its temperature at packing.
• The pouch: width, film type and a sample.
• The pack: its thickness against the chamber depth, and whether it should end as a soft pouch or a hard brick.
• The count: packs per day, and how long loading takes against the vacuum cycle.
• Gas: whether the product needs a gas flush instead of plain vacuum.
• The site: single phase socket, three phase point, compressed air for the VP600V.

With these answers, one or two of the six models usually stand out. Send them on WhatsApp to +91 95822 69346.

Chamber Vacuum or a Band Sealer?

A chamber machine is the right tool for trays, jars, rigid parts and a deep vacuum, and for small or varied batches. When many identical flexible pouches must be packed one after another, the loading time of a chamber becomes the limit. The CVS900 band sealer draws a vacuum and back-fills gas while pouches move on a belt, and the nitrogen flushing band sealer page compares it with the gas-only CS900AF. Many food units keep a chamber machine for odd jobs and a band sealer for the daily run.

Typical Products and the Machine for Each

• Cashews, almonds and other dry fruit in retail pouches: the VP single chamber, or the VP2SB when volumes rise.
• Paneer and cheese blocks: the VP2SB in a morning rush, the VP260 on a shop counter.
• Ground coffee and spice powder sold as bricks: the SV650.
• Tea and coffee in small aroma pouches: the VP250.
• Pickles, gravies and marinated meat or fish: the VP600V, with the pouch hanging upright.
• Machined parts and electronics kept dry in storage: the VP single chamber or a table top unit, with protectors over sharp edges.

How to Maintain a Vacuum Packing Machine?

After every shift: wipe the chamber and the sealing bars, especially on food work.

Weekly: look at the seal for weak spots and at the lid gasket for cuts.

Keep powders and liquids out of the chamber floor so they are not drawn towards the pump.

On three phase machines, have the supply checked before installation.

Safety: switch off before cleaning the bars.

For parts or a pouch trial, WhatsApp +91 95822 69346.

Frequently Asked Questions about Vacuum Packing Machines
