Continuous Band Sealer Machine Horizontal, Vertical & Nitrogen Flushing
Seal pouches and bags on the move, from 3 kg retail packs to 15 kg sacks. Horizontal, vertical, gas-flushing and heavy-duty models, with a GST invoice and free delivery anywhere in India. CS900 from ₹12,812 + ₹2,306 GST.
PackForge Continuous Band Sealers · 6 models
Live prices from our catalogue · GST invoice · free delivery across India
PackForge CS900L / CS900V
PackForge CS900AF
PackForge CS900LW / CS900VW
PackForge CS1100
PackForge CVS900
PackForge CS1680Continuous Band Sealer Price List in India (2026)
Six continuous band sealers make up the PackForge range, from the bench-sized CS900 to the 107 kg CS1680 that closes 15 kg bags of thick laminate. Rates below are before GST; GST at 18% is shown beside each one, and delivery is free to any PIN code in India.
| Model | Type | Pack up to | Speed | Best for | Rate |
|---|---|---|---|---|---|
| CS900L / CS900V | Horizontal or vertical, general purpose | 3 kg | 0–12 m/min | Embossed date code | from ₹12,812 + ₹2,306 GST |
| CS900AF | Air / nitrogen flushing | 3 kg | 0–12 m/min | Gas flush before the seal | from ₹40,320 + ₹7,258 GST |

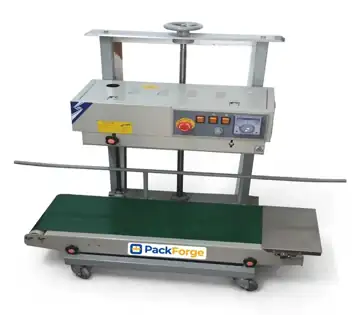

| CS900LW / CS900VW | Horizontal or vertical, 300 mm wide belt | 5 kg | 0–12 m/min | Wide base for bigger pouches | from ₹48,025 + ₹8,645 GST |

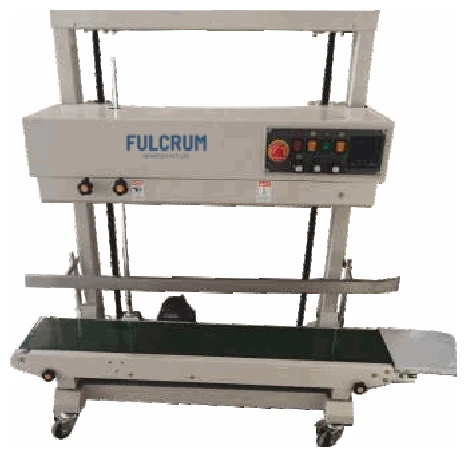

| CS1100 | Vertical, heavy pouch | 10 kg | 0–12 m/min | Steel-wheel date printing | ₹95,872 + ₹17,257 GST |
| CVS900 | Vacuum + gas flushing | 3 kg | — | Vacuum, then gas back-fill | from ₹1,10,208 + ₹19,837 GST |
| CS1680 | Heavy duty, thick film | 15 kg | 0–10 m/min | 0.12–0.18 mm laminate | ₹1,98,912 + ₹35,804 GST |
“From” means the model comes in more than one version (for example horizontal or vertical, or with a different coder). The full comparison, including foot and table-top sealers, is on the band sealing machine price list. Rates as on October 2026.
What Is a Continuous Band Sealer?
A continuous band sealer closes the open mouth of a filled pouch while the pouch keeps moving. Instead of pressing one bag at a time between two jaws, the machine grips the top of the bag between a pair of running belts and draws it past heated blocks, so an operator can feed pouch after pouch without waiting for a press cycle.
That is what separates it from an impulse sealer or a foot sealer. A hand machine suits a few hundred packs a day; once a packing table turns out bags faster than one person can press them, the band sealer takes over and the seal stays the same on the first pouch and the last.
How Does a Continuous Band Heat Sealer Work?
Every PackForge band sealer follows the same path from open pouch to finished seal. Once the heat and belt speed are set for the film, the operator only has to place the pouch.
Three settings decide the result: temperature, belt speed and the seal width of the model (8–10 mm on most, 6–12 mm on the CS1100 and CVS900). Thicker film needs either more heat or a slower belt; if a seal peels apart, slow the belt down before turning the heat up. The conveyor under the bag simply carries its weight, which is why each model has a load limit.
Horizontal vs Vertical Continuous Band Sealer
The CS900 and the wide-belt CS900LW / VW are each offered in two body styles, and the pouch contents decide which one you need. A detailed comparison with photos is on our vertical band sealer machine page.
| Point | Horizontal (L models) | Vertical (V models) |
|---|---|---|
| How the pouch travels | Lying flat on the belt | Standing upright |
| Best contents | Snacks, garments, small parts, items that stay put | Powders, granules, liquids and heavier fills |
| Models | CS900L, CS900LW | CS900V, CS900VW, CS1100 |
| Net weight | 32 kg (CS900L), 40 kg (CS900LW) | 37 kg (CS900V), 50 kg (CS900VW), 42 kg (CS1100) |
| Speed, heat, seal width | Up to 12 m/min, up to 300 °C, 8–10 mm | Same, except the CS1100 seals 6–12 mm wide |
Compare vertical band sealers →
Continuous Band Sealer with Nitrogen Flushing & Vacuum
Fried snacks, roasted coffee and dry fruits lose crispness and aroma when the air left in the pouch reacts with them. Two PackForge sealers change the air in the pouch before it is closed. How each one works, the gas supply it needs and the checks to run are explained on the nitrogen flushing band sealer page.
Gas flushing does not sterilise food or replace good pouch film; it slows down staling. Use a laminate with a proper barrier layer, or the gas will escape through the film over the following weeks.
See nitrogen flushing band sealers →
Heavy Duty Continuous Band Sealer for 10–15 kg Bags
The CS900 family carries packs up to 5 kg. Bags heavier than that move to one of two reinforced machines:
For sacks heavier than 15 kg, a conveyor sealer is the wrong tool. The PS700A pneumatic sealing machine closes bags of up to 50 kg between air-driven jaws, 2 to 10 times a minute. It needs a compressed air supply, which the belt sealers do not.
CS900 Continuous Band Sealer – Technical Specifications

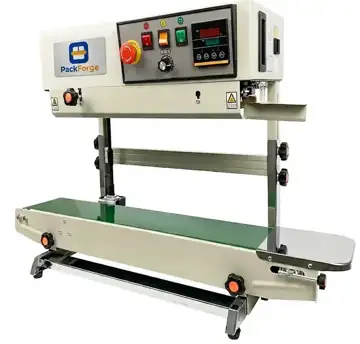

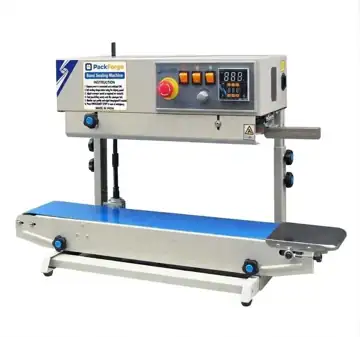

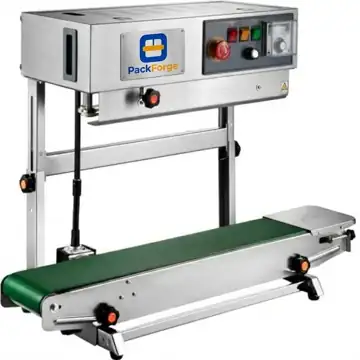

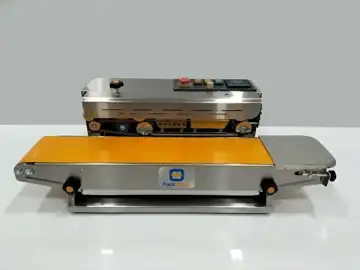

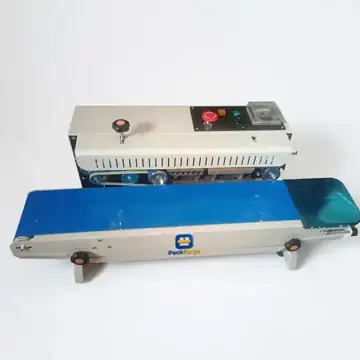

The CS900 is the entry model of the range. Its figures from the product datasheet are below; the full page, with photos and ordering, is the PackForge CS900 continuous band sealer.
| Models | CS900L (horizontal) and CS900V (vertical) |
| Electrical supply | 220 V / 50 Hz |
| Power | 650 W |
| Sealing speed | 0 – 12 metre / min |
| Seal width | 8 – 10 mm |
| Temperature range | 0 – 300 °C |
| Conveyor size (L × W) | 840 × 153 mm |
| Film thickness | 0.08 mm |
| Conveyor loading | up to 3 kg |
| Coding | Embossed date code on the seal |
| Net weight | 32 kg (CS900L) / 37 kg (CS900V) |
| Warranty | 12 months on manufacturing defects; wear parts excluded |
| Rate | from ₹12,812 + ₹2,306 GST |
Figures are approximate; the datasheet sent with the quotation is final.
Applications of Continuous Band Sealing Machines
Band sealers are bought wherever pouches are filled faster than a hand sealer can close them. These are the jobs PackForge machines do most often:
How to Choose the Right Continuous Band Sealer
Five questions narrow the six models down to one, usually in a single phone call:
- Does the pouch lie flat or stand up? Loose powders, grains and liquids need a vertical model; flat items can go horizontal.
- What does the heaviest filled pack weigh? Up to 3 kg: CS900. Up to 5 kg: CS900LW / VW. Up to 10 kg: CS1100. Up to 15 kg: CS1680.
- How thick is the film? The CS900 family is set up for film of about 0.08 mm; thick 0.12–0.18 mm laminate needs the CS1680.
- Does the product need gas? Snacks, coffee and dry fruit that go stale point to the CS900AF, or to the CVS900 when the air must be pulled out first.
- Do you print a date or batch? The CS900 embosses a date; the CS1100 prints one with a steel wheel. Fix the format before ordering.
Continuous Band Sealer Spare Parts, Belt Replacement & Service
A band sealer runs for years when its few wear parts are changed in time. The two that wear in normal use are the conveying belts and the heating elements; both are excluded from the warranty because they wear with use, and both are kept in stock at Faridabad.
- Belts: there is no fixed change interval. Replace them once you see a cut, a shiny glazed surface or stretching, because a tired belt stops holding the films flat.
- Seal getting weaker at the same setting? Rule out the temperature and belt speed first, then the belts, and only then the heating blocks.
- End of the shift: clear powder and oil from the belts and guides so it does not bake onto them the next morning.
- Spares on the shelf: one spare set of belts beside the machine turns a breakdown into a quick change.
- Safety: switch off and wait for the heating zone to cool before any cover is opened.
To order, send the model and a photo through the spare parts enquiry page; the part is confirmed before it is sent. Plants running several machines can cover them under an AMC plan or book a service visit.
Why Buy from PackForge – Continuous Band Sealer Manufacturer in India
PackForge Industries, a division of Fulcrum Infratech Pvt. Ltd., manufactures its band sealers at its works in Faridabad, Haryana and sells them direct. Buying from the maker means:
Continuous Band Sealer – FAQs
What is a continuous band sealer?
A continuous band sealer is a heat sealing machine that seals pouches and bags non-stop as they move on a conveyor. Two moving bands carry the bag mouth through heating and cooling blocks, and then through embossing rollers, so you get a strong, uniform seal without stopping for each bag.
What is the price of a continuous band sealer in India?
PackForge continuous band sealers start at ₹12,812 + GST for the CS900 (horizontal or vertical). Air and nitrogen flushing models start at ₹40,320 + GST, and the CS1680 heavy-duty model is ₹1,98,912 + GST. Delivery is free across India.
What is the difference between a horizontal and a vertical band sealer?
A horizontal band sealer seals bags lying flat, which suits light, dry products like snacks and spices. A vertical band sealer seals bags standing upright on the conveyor, which suits liquids, powders and heavier fills that would spill if laid flat.
How fast does a continuous band sealer work?
Conveyor speed is adjustable from 0 to 12 metres per minute on most PackForge models (0–10 m/min on the CS1680). Real output depends on how fast the operator feeds the bags.
What is the maximum bag weight a band sealer can handle?
The CS900 handles up to 3 kg, the CS900LW/VW wide-conveyor model up to 5 kg, the CS1100 up to 10 kg, and the CS1680 heavy-duty sealer up to 15 kg.
Is a continuous band sealer with nitrogen flushing available?
Yes. The CS900AF flushes air or nitrogen into the pouch before sealing, and the CVS900 first removes air with vacuum and then back-fills with gas. Both help extend the shelf life of snacks, coffee and dry fruits.
Can a band sealer print the date or batch number?
Yes. The CS900 embosses a date code on the seal, and the CS1100 prints with a steel-wheel date printer during sealing.
Which pouches can a continuous band sealer seal?
Any heat-sealable plastic or laminated pouch, such as PE, PP, multilayer laminates and foil-laminated pouches, as well as laminated or woven sacks. Seal temperature goes up to 300 °C.
What warranty comes with a continuous band sealer?
12 months on manufacturing defects. Wear parts such as belts and heating elements are not covered, and PackForge keeps them in stock for replacement.
Where can I buy continuous band sealer spare parts and belts?
PackForge supplies band sealer belts, heating elements and other spare parts across India. Send your model and a photo through the spare parts enquiry page.
