PackForge 20 inch hand impulse sealer with spare heating elements

Hover to Zoom

Product photograph is for reference. Minor details may vary by batch.

Not sure which model?

Tell us what you pack and how many a day. We will come back with the right model and a price.

Ask on WhatsAppCall +91 95822 69346Call +91 98184 33150

What comes with the machine

GST invoiceRaised against your GSTIN, for full input credit.
Spares held in stockWear parts for every model we sell.
Datasheet on requestAsk and it comes back with the quote.
Free delivery across IndiaIndia and Africa, handled from our end.

PackForge 20 Inch Hand Impulse Sealer – 500 mm Seal

Hand operated, bench top

Short Description

A 500 mm hand impulse sealer for 5–10 kg rice, atta, sugar and cattle-feed bags. Chakkis, rice mills and grocery repackers use it to close wide PE and PP bags up to 19.5 inch in one press with a 2 mm seal. Long metal bar, 8-level timer, spares in stock at Faridabad.

Country of Origin: India · Manufactured by: PackForge Industries, Faridabad, Haryana

•
Buy more, save more2 pcs 3% · 3 pcs 5% · 4 pcs 7.5% · 5–49 pcs 10% · 50+ pcs 15% off — applied in the cart.
Made in IndiaISO 9001:2015GST Invoice2 Year WarrantySpares in Stock

Specifications

SKU / ModelPF-IMP-20
Seal length500 mm (20 inch)
FilmsPE, LDPE, HDPE, PP, PE-lined; max. 150 micron
Widest bag mouth490 mm (19.5 inch), laid flat
Supply220–240 V AC, single phase
Weight (approx.)About 4.8 kg
Warranty2 years; element and Teflon tape excluded
Heater power600 W
Timer8-level dial
Seal width2 mm
BodyMetal
Country of OriginIndia
HSN code84223000

Figures are approximate; the quotation datasheet is final.

PFPackForge Industries — a division of Fulcrum Infratech Pvt. Ltd.
Manufactured by PackForgeManufactured by PackForge Industries at Faridabad, Haryana.
Spares stockedWear parts held for every model we sell, so a line is not down waiting on one component.
India & AfricaSupplied and serviced across India, and exported with packing, documentation and freight handled from our end.
GST invoiceGenuine spare partsOne company for machine, spares and service

How an impulse sealer works

20 inch · 500 mm bar
  1. 1 · Dial for filmLDPE low, PP higher
  2. 2 · Bag on barmouth up to 490 mm
  3. 3 · Squeeze arm600 W, lamp on
  4. 4 · 2 s waitlamp off, lift
0:00 / 0:08

PackForge 20 Inch Hand Impulse Sealer – 500 mm Seal

SKU: PF-IMP-20

₹3,539 (Incl. of all taxes)
₹2,999+ ₹540 GST
MRP ₹3,89923% OFF
Update Qty

🚚 Delivered by Mon, 2 Nov - Tue, 3 Nov · Free delivery ·

Cash on Delivery available
No cost EMI from ₹1,180/month
& moreSecured by Razorpay
Chat on WhatsApp

Sold by PackForge Industries,
a division of Fulcrum Infratech Pvt. Ltd.

🏅 15 Years of Manufacturing👑 Leading Manufacturer & Exporter
PackForge AssuredGenuine · GST invoice · Service support
Compare models

Not sure this is the right model? +91 95822 69346 / +91 98184 33150 — tell us the job, not the model number.

India’s Leading Packaging & Material Handling Machine Manufacturer
🛡 Trusted by plants across India for 15 Years
15+Years of Manufacturing
131+Products in Range
India & AfricaSupply & Service
📄 GST Invoice✅ Genuine Product🔧 Spares & Service

Delivery Details

Check serviceability at your location

Get customised quotes from us

IN+91

Enter a valid 10 digit mobile number.

We will contact you on this number

Atta & rice bags · 20 inch / 500 mm

What is a 20 inch impulse sealer?

A 20 inch impulse sealer is a hand-press machine with a 500 mm heating bar for wide bags – 5 kg and 10 kg rice, atta and sugar packs and cattle-feed bags up to about 19.5 inch (490 mm) wide.

This is the chakki and rice-mill size. A 5 kg atta bag of 16 × 24 inch and a 10 kg rice bag of 18 × 28 inch both have mouths that only a 500 mm bar can cross in one stroke. The Standard 20 inch, with a 600 W element and a 4.8 kg body, suits a mill counter or repacker sealing a few hundred bags a day.

Besides atta and rice, it closes family-size sugar and dal bags, PE inner liners for cattle and poultry feed before the outer sack is stitched, and PP bags of seed and fertilizer for agro dealers. Laundry and blanket shops also use it on wide covers. The limit is a mouth of about 19.5 inch.

Atta and rice bags on the 20 inch – 4 steps

  1. 1
    Mark atta and rice settingsThin LDPE atta bags take a lower dial number than thick PP rice bags; reset it whenever you switch.
  2. 2
    Lay the bag mouth across 500 mmA 5 kg atta bag of 16 × 24 inch fits easily; anything as wide as 490 mm (19.5 inch) closes in one stroke.
  3. 3
    Press – 600 W across the barThe element is powered only for the press, while the lamp shows.
  4. 4
    Hold, then releaseWait roughly 2 seconds after the lamp switches off; a full-width seal on a heavy bag needs that moment.
  • 500 mm seal bar
  • Seal width 2 mm
  • Heater 600 W
  • Timer: 8 levels
  • Approx. 4.8 kg
  • Up to 150 micron film
PackForge Standard hand impulse sealer with timer dial and spare elements (reference photo for the 20 inch PF-IMP-20)Handle500 mm sealing barTimer knobSpares in the box
Instant start the bar cools between bags
Reference picture of the Standard body – the PF-IMP-20 bar measures 500 mm

What is in the box

20 inch sealer, 2 spare elements, spare Teflon tape, manual.

PackForge 20 inch impulse sealer as supplied, with two spare heating elements and Teflon tape

Box contents – PF-IMP-20

  • 20 inch impulse sealerMetal body, 500 mm bar, 8-level dial
  • Spare elements, twoFor the 500 mm bar
  • One spare Teflon tapeReplace a brown or torn strip
  • Warranty card + manual2-year warranty, made in India
PackForge guide to replacing the heating element of a hand impulse sealer

Weak seals on rice bags?

Check the dial first; if a fresh strip and a higher setting still give a weak 500 mm seal, change the element.

Element change guide →

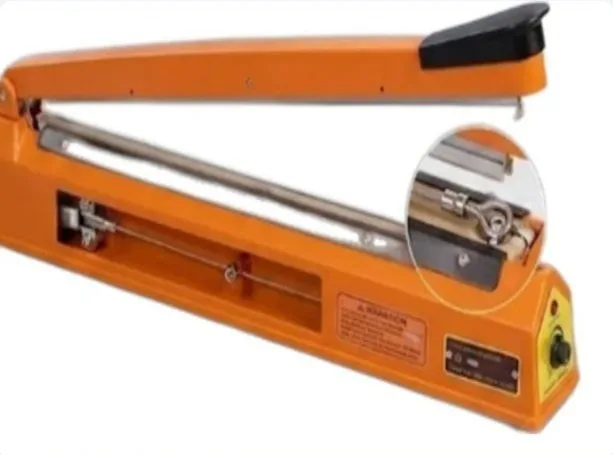

Side view of a PackForge hand impulse sealer showing the heating element, Teflon strip and timer knob

A mill-counter machine

The 4.8 kg body sits steady at a chakki or mill counter and runs from a plain 220–240 V single phase socket.

20 inch spares →

Which bags and pouches fit the 20 inch sealer?

Bag mouth laid flat: 490 mm (19.5 inch) or less closes on the 20 inch bar in one press.

5 kg atta / rice bag16 × 24 inch LDPE or PP bags at the chakki or mill.
10 kg rice bag18 × 28 inch bags up to 19.5 inch wide at the mouth.
Cattle feed / seed bagPP and PE inner liners for feed and seed.
22–23 inch bag mouth ✕Use the 24 inch impulse sealer.
25–50 kg woven sack ✕Stitched or heavy woven sacks need a sack closer or band sealer.
Small 4 × 6 inch pouchIt works, but an 8 inch sealer is lighter and cheaper for small packs.

Free seal test for your pouch

Book it

Who buys the 20 inch model

  • Atta chakkis and flour mills – 5 kg and 10 kg atta bags.
  • Rice mills and rice traders – 5 kg to 10 kg retail rice bags.
  • Sugar, dal and grocery repackers packing family-size bags.
  • Cattle-feed and poultry-feed units sealing PE liners.
  • Seed and fertilizer dealers packing agro-inputs.
  • Laundry, linen and blanket shops sealing wide covers.

Atta and rice bags at 20 inch

  • Fill and settle a 10 kg bag on the floor or a low stool, then lift only its mouth to the bar.
  • Flour dust on the inner lip causes most weak seals at a chakki, so wipe the top inch clean first.
  • Pull the mouth taut from both sides so the film lies without wrinkles along the full 500 mm.
  • Thick PP rice bags need a higher dial number than thin LDPE atta bags; reset the timer whenever you switch between them.

Bar care on the 20 inch

Flour, bran and feed dust are the main enemies of a 500 mm bar. Brush the Teflon strip at every break and look along its full length for burnt spots, since one bad patch weakens the whole seal. Thin LDPE atta bags need a lower dial number than thick PP rice bags or feed liners, so mark both positions on the machine body. Keep the arm down for a moment after the pulse so the long seal sets before the heavy bag is moved. If the middle of the seal stays weak after a fresh strip goes on, the element needs replacing from the spares.

Standard vs Heavy Duty – 20 inch model

FeatureStandard (PF-IMP-20)Heavy Duty (PF-IMP-20-HD)
Price + GST (free delivery)₹2,999₹3,999
MRP₹3,899₹5,299
Suited toUp to a few hundred bags a dayAll-day counter or packing-line use
Warranty2 years5 years

Compare every size on our heavy duty impulse sealer page.

Shorter bar, longer bar or Heavy Duty

If your largest bag is a 2 kg grocery pack, the 16 inch does the job with less weight. If grain liners reach 22 to 23 inch, take the 24 inch. Woven 25 to 50 kg sacks fall outside impulse sealing altogether. A small chakki packing only in the morning is well served by this Standard model; a mill sealing on every shift should choose the Heavy Duty 20 inch.

20 inch impulse sealer price in India

Standard 20 inch₹2,999 + 18% GSTMRP ₹3,899, 23% off
Heavy Duty 20 inch₹3,999
5 pieces in the cart₹2,699 each

Buy the 20 inch impulse sealer online

20 inch spare parts

Heating Element + Teflon Kit, 20 inch (500 mm)PF-SP-KIT-20₹399
Silicone Rubber Pad, 20 inch (500 mm)PF-SP-PAD-20₹249
Teflon Tape Roll, 10 m (fits 8 to 24 inch)PF-SP-TEF-10M₹349
Timer PCB Board (impulse sealer)PF-SP-PCB₹949

Bought the 20 inch impulse sealer?

Share your experience

20 inch impulse sealer – frequently asked questions

Can it seal stitched woven sacks?

No. Woven PP sacks for 25 to 50 kg are stitched with a sack closer or closed with a band sealer. The 20 inch is for the PE or PP liner inside them, or for retail bags of up to 10 kg.

Will atta leak through the seal in transit?

A full-width seal made on a clean mouth keeps flour in. Leaks usually trace back to powder trapped in the seal line, or to a seal that was not held down long enough to cool.

Can I also seal small pouches on it?

You can, but a 4.8 kg machine with a 500 mm bar is more than a 4 × 6 inch pouch needs. A shop doing mainly small packs is better off keeping an 8 inch beside it.

Where should the machine sit at a chakki?

Away from the flour outlet, on a firm table at about waist height, so heavy bags reach the bar without straining anyone's back. Keep the power cord off the floor where bags get dragged.

Can it seal a bag filled right to the brim?

Leave at least two to three inches of empty bag above the atta or rice. The mouth must lie flat across the 500 mm bar; an overfilled bag pulls the film and gives a weak or crooked seal.

Is the 20 inch suitable for laundry and blanket covers?

Yes, for covers whose mouth is under 19.5 inch. Laundries close cleaned linen in LDPE covers on it; blankets packed in wider covers need the 24 inch instead.

Factory price for the 500 mm sealer

WhatsApp us

Written by the PackForge Technical Team, Faridabad · Last updated: 04 October 2026

PackForge Insights: Impulse Sealers

Worked out from the 14 impulse sealer listings listed on PackForge on 13 October 2026. These are counts of models and starting rates (before GST) from our own catalogue, not sales figures or customer ratings.

PriceStarting rate before GST, all 14 product listings
  • Under ₹2,0003 · 21%
  • ₹2,000 to ₹2,9995 · 36%
  • ₹3,000 to ₹6,5004 · 29%
  • ₹15,000 and above2 · 14%

8 of 14 listings start under ₹3,000 + GST, so a hand sealer fits almost any counter budget.

TypeAll 14 product listings
  • Hand sealer, Standard6 · 43%
  • Hand sealer, Heavy Duty6 · 43%
  • Foot operated1 · 7%
  • Table top1 · 7%

Every hand size comes in two bodies: Standard for daily packing and Heavy Duty for all-day sealing.

Seal Length18 seal lengths offered across the 14 listings (Standard and Heavy Duty counted separately)
  • Up to 300 mm (8 to 12 inch)6 · 33%
  • 350 to 500 mm (14 to 20 inch)7 · 39%
  • 600 to 800 mm (24 to 32 inch)5 · 28%

Pick a bar longer than your widest bag laid flat. 300 mm (12 inch) suits most 1 kg grocery packs.

WarrantyAll 14 product listings
  • 2 years6 · 43%
  • 5 years6 · 43%
  • 1 year (foot and table top)2 · 14%

Heavy Duty hand sealers carry the longest cover: 5 years. Heating elements and Teflon tape are wear parts.

Standard vs Heavy Duty PriceRate before GST, by size

Standard (2-year warranty)Heavy Duty (5-year warranty)

  • 8 inch₹1,348₹2,348
  • 10 inch₹1,573₹2,573
  • 12 inch₹1,873₹2,873
  • 16 inch₹2,687₹3,687
  • 20 inch₹2,999₹3,999
  • 24 inch₹5,425₹6,425

Heavy Duty costs about ₹1,000 more at each size, for a body built for all-day work and 5 years of cover.
