Carton Sealing Machine for Export Packing

What does a carton go through on an export journey?

A domestic carton usually travels a few days on one truck. An export carton passes through many more hands, and each stage tests the seal in a different way:

1. Factory to port or ICD. Road transport, loading and unloading, often by hand.
2. Stuffing. Cartons are stacked floor to roof in the container, so the bottom layer carries the whole column.
3. Sea leg. Weeks inside a steel box. Temperature swings between day and night cause moisture to condense on the roof and walls.
4. Inspection. Customs or a buyer's agent may cut open sample cartons and close them again.
5. Destination. Another round of handling into a warehouse, where stacks can go higher still.

A seal that is merely acceptable on day one has to hold for all five stages. That is the real job of a carton sealing machine for export work.

Start with the buyer's packing specification

Most overseas buyers send a packing instruction with the order. Read it before choosing a machine, because it often settles the question for you. Look for these points:

• Tape width. Many specifications ask for 3-inch tape; some accept 2-inch on light cartons.
• Seal pattern. A centre strip top and bottom, or an H-seal with edge strips.
• Straps. The number of PP straps per carton, and whether they run one way or crosswise.
• Carton grade. The ply and board strength the buyer expects.
• Marks. Where the shipping marks and labels must sit, which decides where tape may not go.

If the instruction is vague, ask the buyer for it in writing. A claim for damaged goods is easier to defend when every carton was packed exactly to the written specification.

Why do damp containers weaken carton seals?

Corrugated board takes up moisture from the air and gradually loses stiffness. In a humid container the walls of a bottom-layer carton start to bow, the flaps flex, and any tape that was laid loosely or with short end legs begins to lift at the corners.

A machine cannot stop board absorbing moisture, but it removes the weak seals that fail first:

• Every strip is pressed down along its full length by the rollers.
• End legs come out the same length on every carton, so no box has a short leg to peel.
• The tape is centred on the joint, gripping both flaps equally.

Do your part on the floor too. Store empty cartons off the ground and away from damp walls, and let cold cartons and tape reach room temperature before a sealing run. Tell us your cartons are going by sea, and the tape grade can be matched to that.

Centre seal, H-seal or strap: which suits your shipment?

Match the closing method to the carton weight and to how the cargo will be handled. Rates exclude 18% GST.

A strap does a different job from tape. Tape keeps the flaps closed; a strap carries lifting load and holds a carton together if the board softens. For export cartons above moderate weight, many packers do both. A separate arch type semi automatic strapping machine costs ₹51,310 + ₹9,236 GST and can sit after any sealer.

Which machines run 72 mm tape for export cartons?

Indian tape sellers usually call 3-inch tape 72 mm, while PackForge lists its 3-inch heads as 76 mm. Send the width printed on your roll core and we will confirm the fit. Published tape widths for the models export packers use most:

• 102TU: 50 mm or 76 mm.

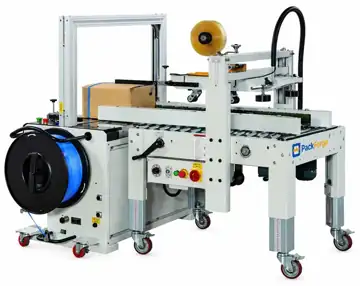

• 102PLS: 50 mm or 76 mm.
• 102TR: 48, 60 or 76 mm.
• 5050Z with flap folder: 48, 60 or 76 mm.
• 5050J edge sealer: 60 or 76 mm.
• 102TUS: 36 or 48 mm only, so it is not a choice where the specification demands 3-inch tape.

The semi automatic carton sealing machine at ₹69,730 + ₹12,551 GST suits steady domestic and export cartons alike; confirm its tape width against your roll before ordering.

Handicraft exporters: sealing cartons from many workshops

Craft exports from clusters such as Moradabad's brass and metalware trade are usually assembled from many small makers. The exporter's yard receives goods in assorted cartons, opens them for checking, repacks some and closes them all again before stuffing.

Three points matter in that kind of yard:

• Inner packing comes first. Wrapping and inserts protect the piece; the sealer only closes the outer carton.
• Sizes vary. A fixed-size sealer needs resetting for nearly every lot. A self-adjusting sealer or hand taping plus a strapper often works better.
• Reseals should look like seals. After inspection, a machine-closed carton looks the same as the rest of the shipment.

For machine choices in that cluster, read export packing in Moradabad.

How do you handle opened and resealed cartons after inspection?

Pre-shipment inspection agencies usually open a sample of cartons from the lot. If those are closed by hand afterwards, they stand out at the destination and invite questions.

1. Keep the sealer close to the inspection area, not only at the packing line.
2. Run resealed cartons through the same machine settings as the original lot.
3. Where a printed tape is used, reseal with the same print so the shipment looks uniform.
4. Record which carton numbers were opened, so the packing list matches what the buyer sees.

A sealer with fast size change, or one that sets itself, saves time here because sample cartons come back in random order.

Size limits to check before you order

Export cartons are sometimes larger than domestic ones. The published maximum width and height for the 102TU, 102TR, 102PLS and 5050J is 500 mm. The 5050J also needs a carton of at least 320 x 200 x 180 mm and handles packs of 2.5 to 30 kg. The 5050Z takes up to 600 x 500 x 500 mm.

Wooden cases and oversized cartons are outside every sealer's range and are better strapped or hand taped. Measure your largest export carton against these limits, and use the carton sealing machine buying guide to work through the rest.

Manufactured in Faridabad: delivery, spares and overseas buyers

PackForge manufactures its sealers in Faridabad and delivers free anywhere in India with a GST invoice. Metro cities usually receive a machine in about 3 days and other towns in 5 to 6 days. On-site service is available in Delhi NCR; elsewhere we help by phone or video and send spares by courier.

Exporters who also ship retail parcels can read the carton sealing machine for e-commerce page. If you are outside India and want to import a PackForge machine, see export orders and documentation. Model rates are on the carton sealing machine price page, and the whole range is on the carton sealing machine page.
